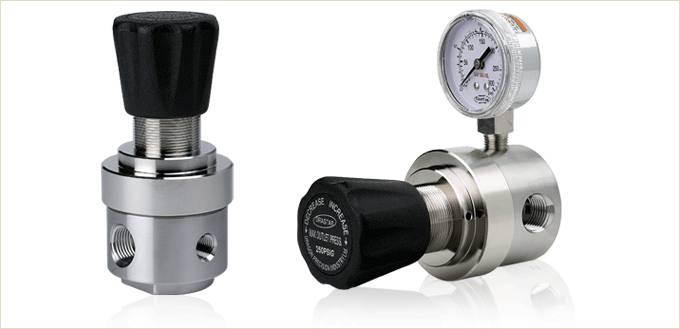

  Á¦Ç°¸í : PRESS REGULATOR
  ¸ðµ¨¸í : 092 Series
  Á¦Á¶¾÷ü : µå·¡°ï
  °¡°Ý : °ßÀû°¡
  °áÀç¹æ¹ý :
  ÃÖ¼ÒÁÖ¹®·® : 1
  ³³±â : ÇùÀÇ
  ¿î¼Û¹æ¹ý : ÇùÀÇ
  ¹ÝÇ°¿©ºÎ : °¡´É
  ´ã´çºÎ¼­ / ´ã´çÀÚ : /
  ¿¬¶ôó : 02-2637-0637

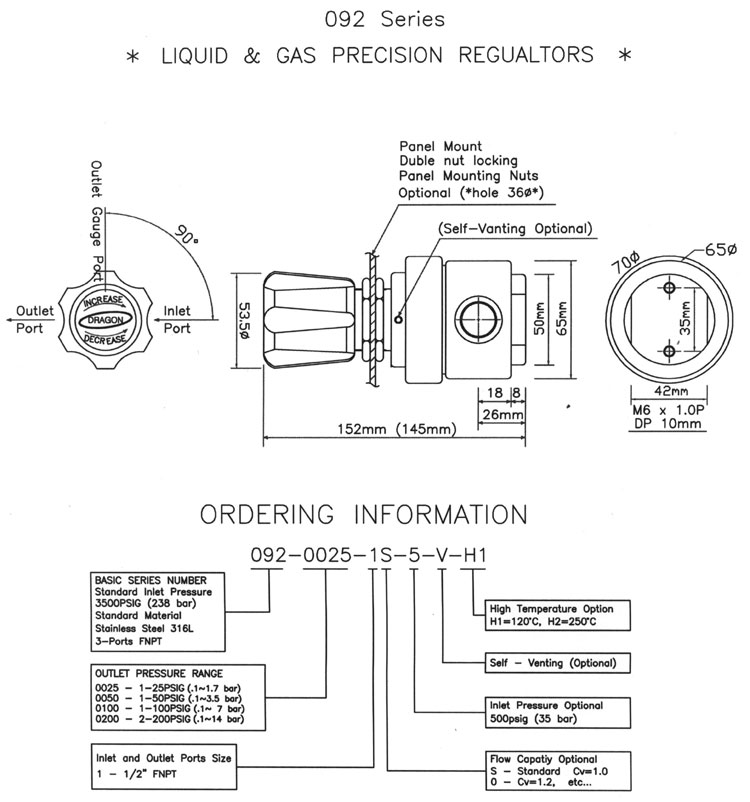

092-0200-1S, 092-0200-1S-V, 092-0200-1S-5, 092-0200-1S-5-V, 092-0200-1S-H1, 092-0200-1S-H2 Ports - FNPT 1/2" Leak Rate Certification - to 2x10-8 atm cc/sec Helium available. Body Materials - Stainless steel 316L Bonnet Material - Nickel Plated Forged Brass(Stainless steel 316L Optional) Diaphragm - Stainless steel 316L Valve - Stainless steel 316L Valve Spring - Stainless steel 316L Valve Seat - Teflon (Kel-F, Polyimide, etc.. Optional) Inlet Pressure Ranges - Model 092-0200-1S, 3,500psig (238bar) Inlet Pressure Ranges - Model 092-0200-1S-5, 500psig (35bar) Outlet Pressure Ranges - 1-25psig (.1-1.7bar) Self-Vanting - Model 092-0200-1S-V Optional Operating Temperature -40¡ÆC - +70¡ÆC (-40¡ÆF - +165¡ÆF) +200¡ÆC - +540¡ÆC (+328¡ÆF - +1000¡ÆF) Optional Operating Temperature Model 092-0200-1S-H1, +120¡ÆC (Optional) Model 092-0200-1S-H2, +250¡ÆC (Optional) Model 092-0200-1S--5-H1, +120¡ÆC (Optional) Model 092-0200-1S--5-H2, +250¡ÆC (Optional) Flow Capacity - Cv=1.0(Optional Cv=1.2 etc) Standard Optional - Outlet Gauge, etc..
